THE EFFICIENT

SOLO 6 ECO UNIT

AN ENERGY EFFICIENT SOLUTION

The SOLO 6 ECO WELFARE offers the legendary robustness and ease of use of the standard groundhog mobile welfare unit whilst offering a green environmental solution.

Powered by solar technology with generator backup, these units ensure optimum performance is maintained when in use and unmanned, giving owners and end users savings by way of reduced fuel usage, reduction in generator servicing, longer generator life, fewer breakdowns and reduced noise pollution – providing all your on-site needs in one reliable and cost effective package, ideal for rental companies and contractors.

INTERNAL UNIT SPECIFICATION

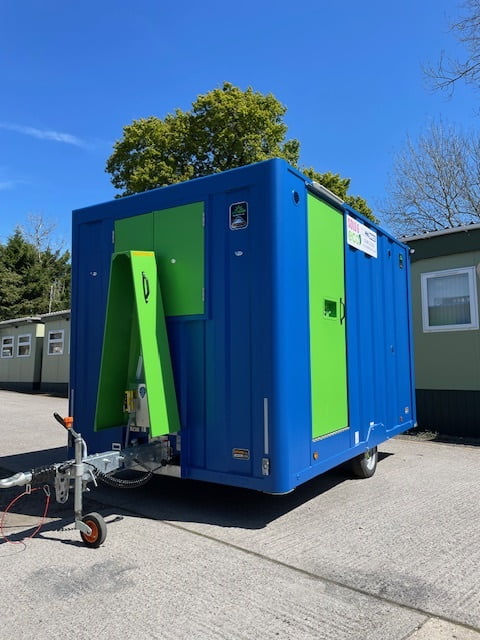

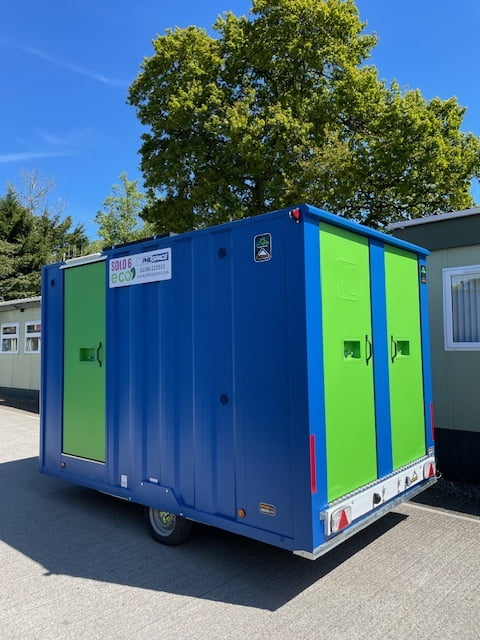

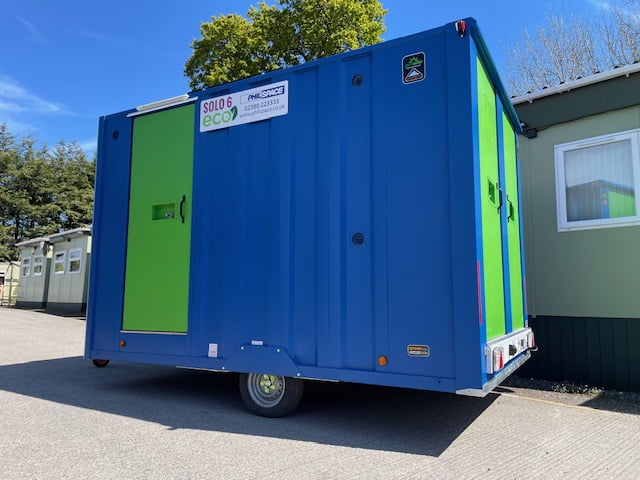

Ground lowering, anti-vandal, robust and easy-to-use single axle mobile welfare accommodation unit.

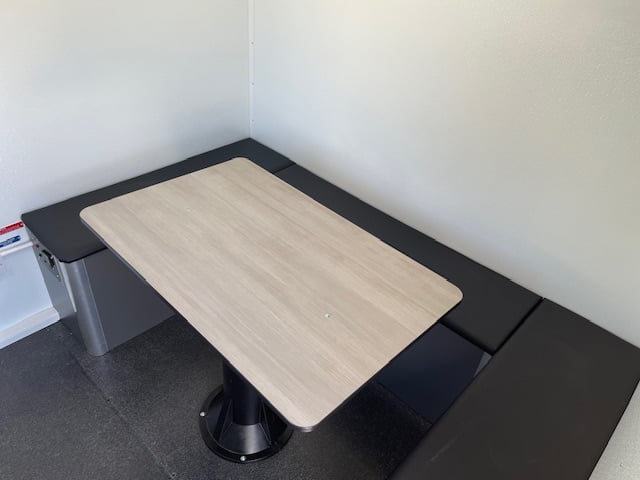

Table and bench seating for up to 6 people
12V LED lighting with PIR
12V diesel powered air blown heating system

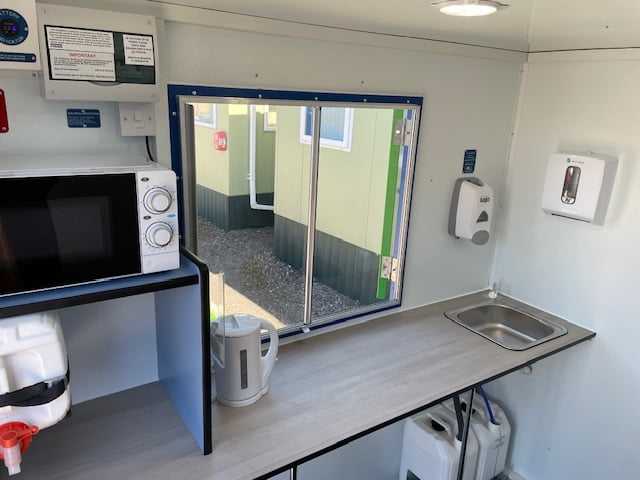

Warm water supplied by a 230V on-board heating system
Large stainless steel sink c/w warm water tap
Single inverter powered socket & USB connection

Generator start panel c/w hour run meter
Fresh & waste water containers (20 Ltr cap each)
Consumer board c/w RCD & MCBs
Carbon monoxide monitor and smoke alarm
130Amp hour battery/ charger & battery guard

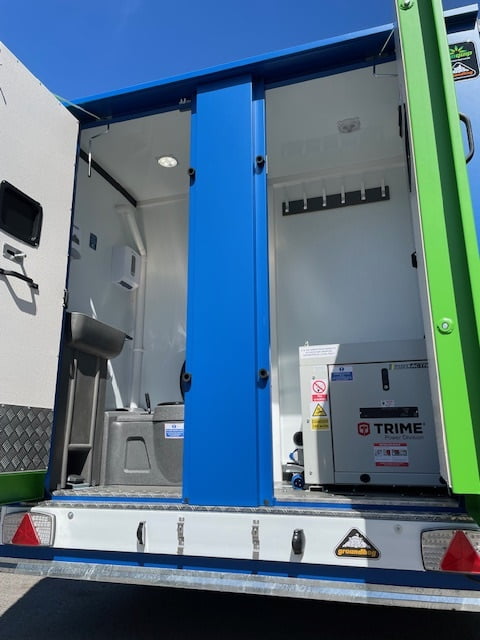

Plastic recirculating toilet
12V LED lighting with PIR
Forearm wash basin c/w warm water tap
Warm water supplied by a 230V on-board heating system

12V LED lighting with PIR
12V diesel powered air blown heating system
Access to fuel tank with separate fuel level gauge (58 Ltr cap)

Fuel Active system
Generator start battery
Fuel tank runtime = approx. 25 hours

Dimensions: 3655mm (L) x 2284mm (W)
Net Weight: 1750 Kgs (approx)
Gross Weight: 1800 Kg

Highly efficient 130amp power AGM battery is charged via intelligent solar power system built in controller and backed up by an on-board power silenced generator – ensures optimum performance is maintained when in use and unmanned.
